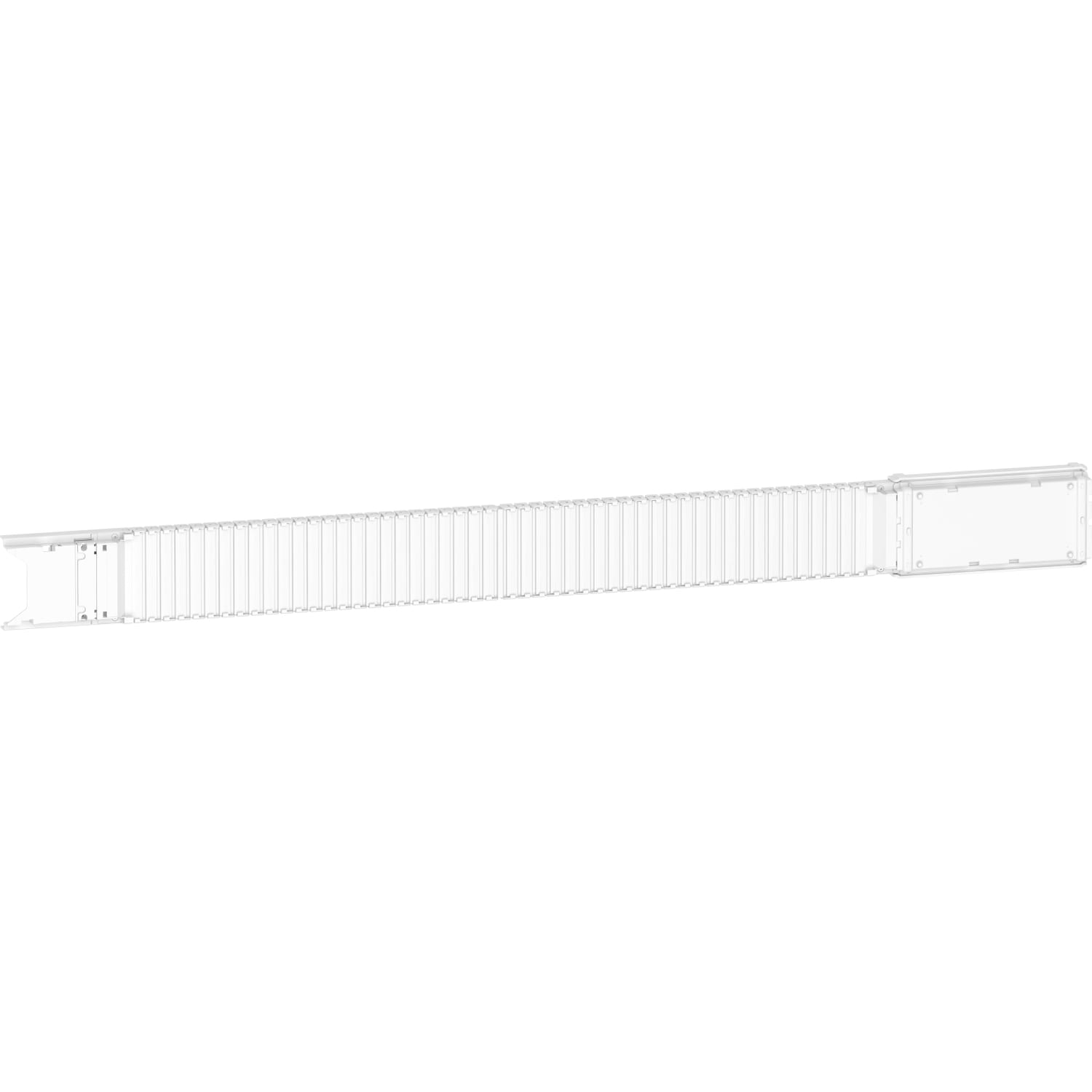

SCHNEIDER ELECTRIC - SNRKNA100DF410 ELEM. FLESSIBILE ORIZZ 100A 1M - KNA100DF410

Canalis busbar trunking for KNA. It's applied to low power distribution. The operational voltage is from 230VAC to 500VAC 50/60Hz. The rated operational current is 100A at 35 ℃. It provides white RAL 9001 surface treatment. Mounting by screws on left or right side of trunking. The operational ambient air temperature is from 0 °C to 35 °C without derating. Designed with 1 circuit allowing. It provides 186 pT radiated magnetic field. It provides 2 dimensions direction change. It provides IP55 protection conforming to IEC 60529. IK08 conforms to EN/IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
